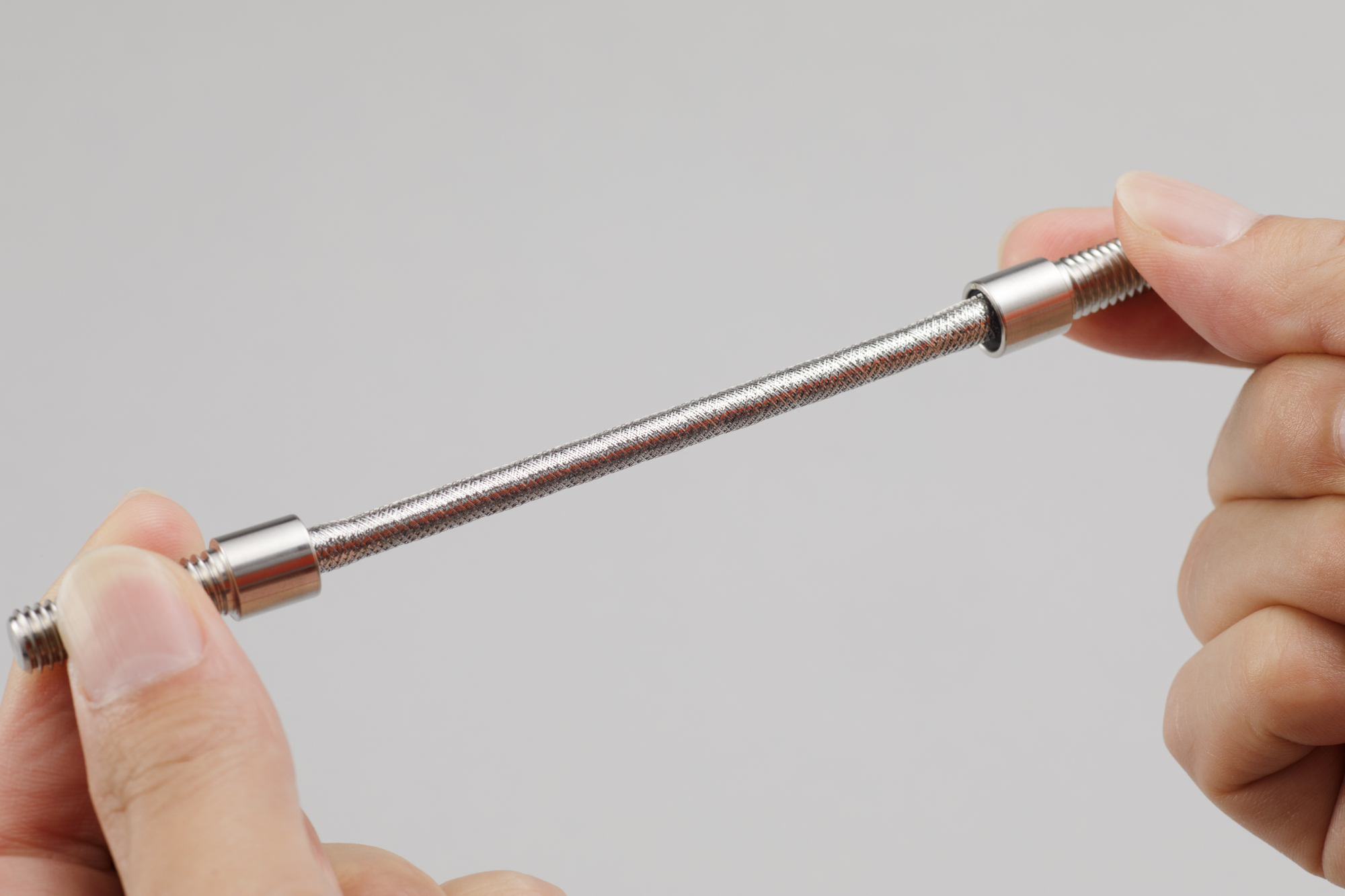

A stretchable seamless tube.
Features
- Made by winding wire, it is kink-resistant and also stretchable.
- Chemical-resistant special alloys including stainless steel and titanium can be used as materials.
Functions that can be added
- Stretch property: Approx. 33% stretchable
- Stretching causes changes in the pore sizes
Normal: 170 um -> Stretched: 210 um (24%) - Bendability (100 mm or less in length: 0-180°, 150 mm or more: 360°)
- Torque transmission ability
Application examples
- Protection of drive unit cables
- Variable filter
- As a medium for torque transmission
Specifications
| Materials | SUS316L and Ti |
| Sizes | OD: φ6, Length of base material: 50-200 mm, Thickness: 1.15 mm |
| OD | φ2.9, Length of base material: 50-200 mm, Thickness: 0.3 mm |
How much N is necessary to stretch?
Electric resistance・Electric conductivity
