A seamless porous tube that can be bent flexibly with fingers.
Features
- Kink-resistant, it retains a bent shape while securing a flow passage.
- Adaptable to areas with stress concentration, while having excellent chemical-resistant properties.
- Enables a porous or nonporous tube wall.
Functions that can be added
- Cell anchorage material
- Electricity conductivity
- Heatability
- Chemical resistance
- Can be autoclave-disinfected
- Filtration capability
- Cleanability
- Can be cut with piezo vibration
- Freely bendable
- Sustained bent shape (bendability)
Application examples
- Bendable up to 2 × tube R
- Partial stress mitigation
- Filtration function to remove foreign objects
- Liquid/gas injection port
- Possible to insert a sheet of thin film to close pores
- Can be joined with existing metal tubes
- Possible to change the direction of and close flow passage
- Coating and fixation possible using resin and heat-shrinkable tubes
Specifications
| Materials | SUS304, SUS316, SUS316L, SUS347, etc |
| Sizes | ID: φ2 mm, 3 mm, etc. Pore size: 2-500 um * Samples are available. Sizes other than indicated above are also possible upon request. |

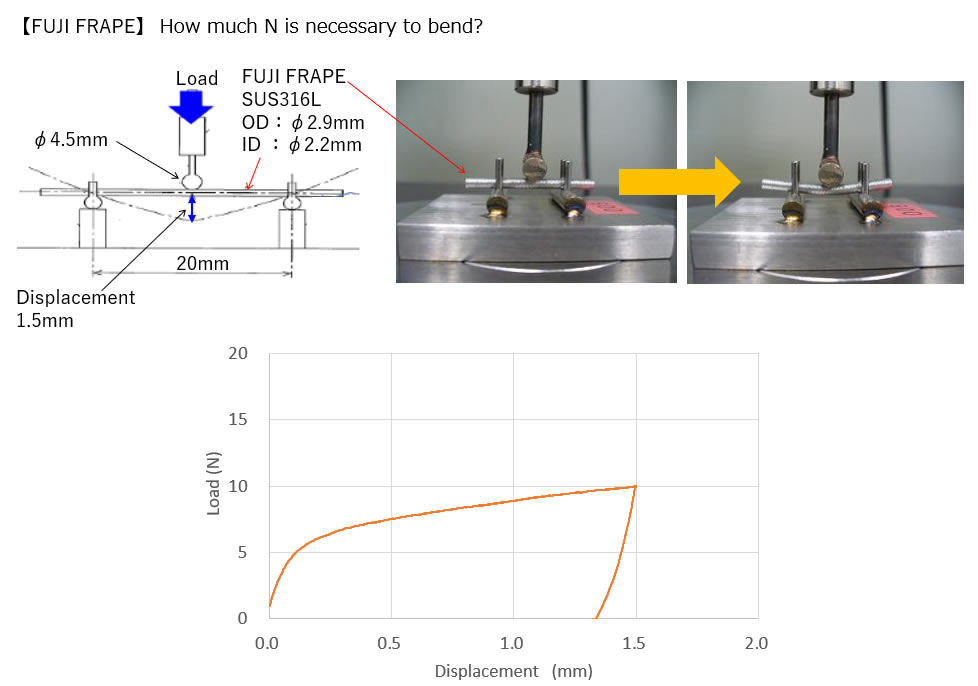

How much N is necessary to bend?

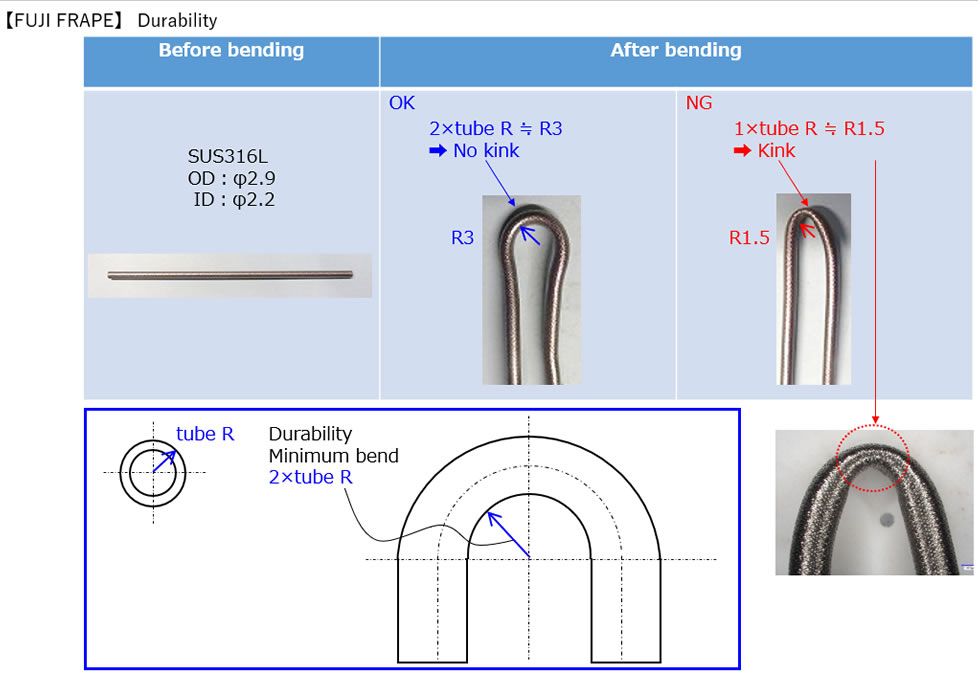

Durability

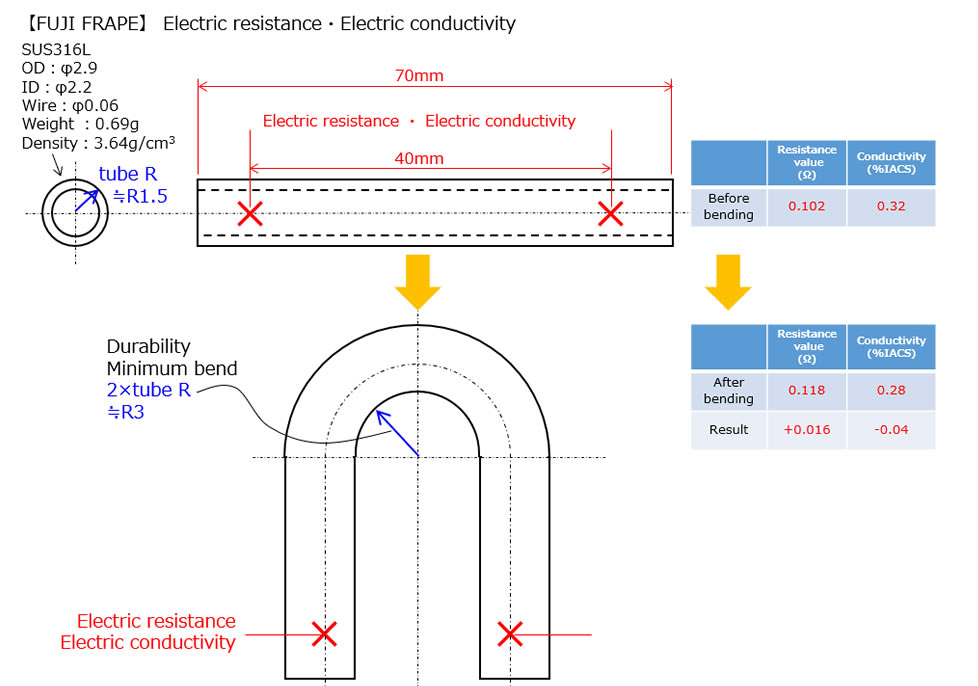

Electric resistance・Electric conductivity
